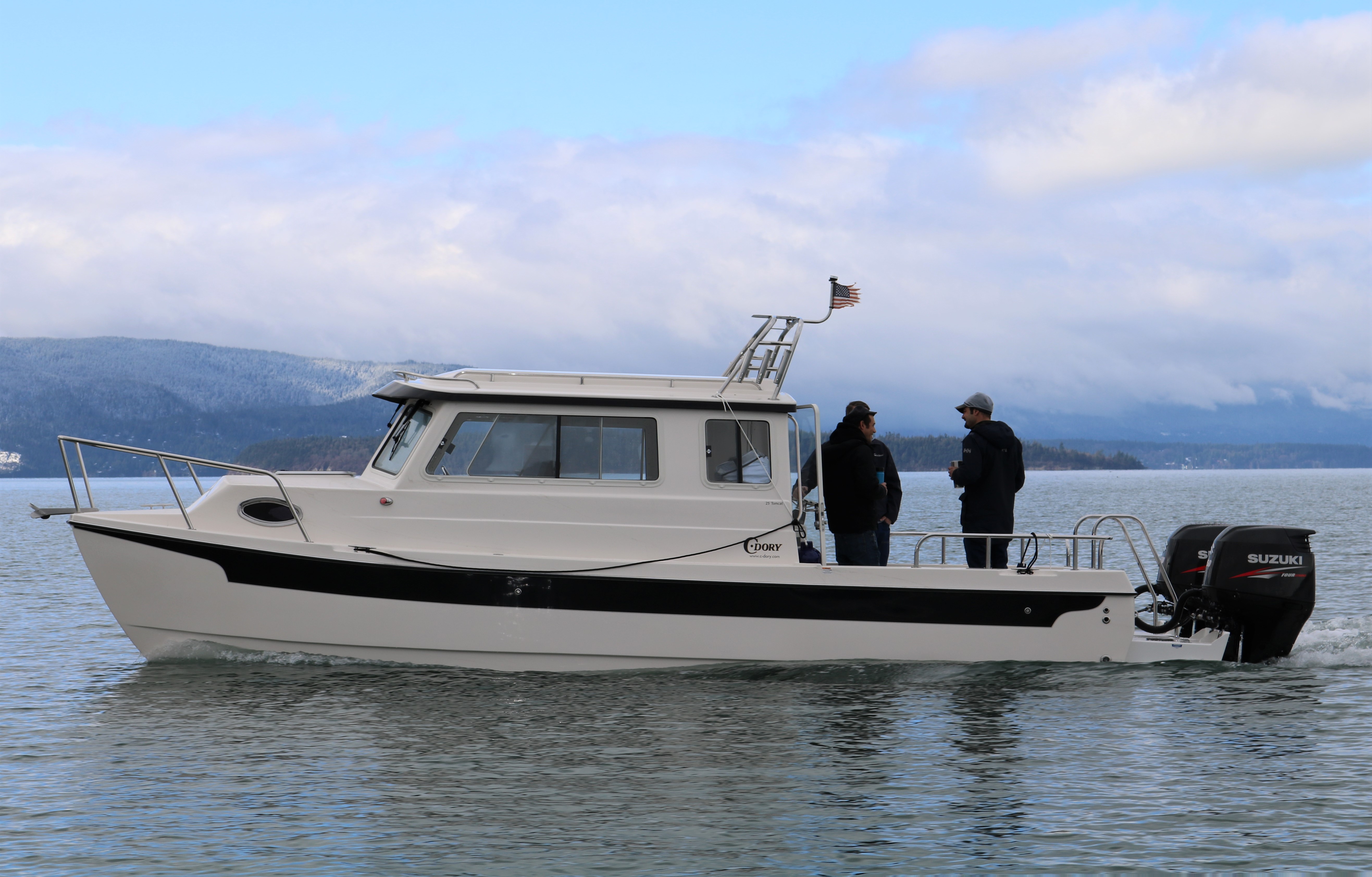

25′ TomCat Sport Catamaran

‹ Back To Catamarans

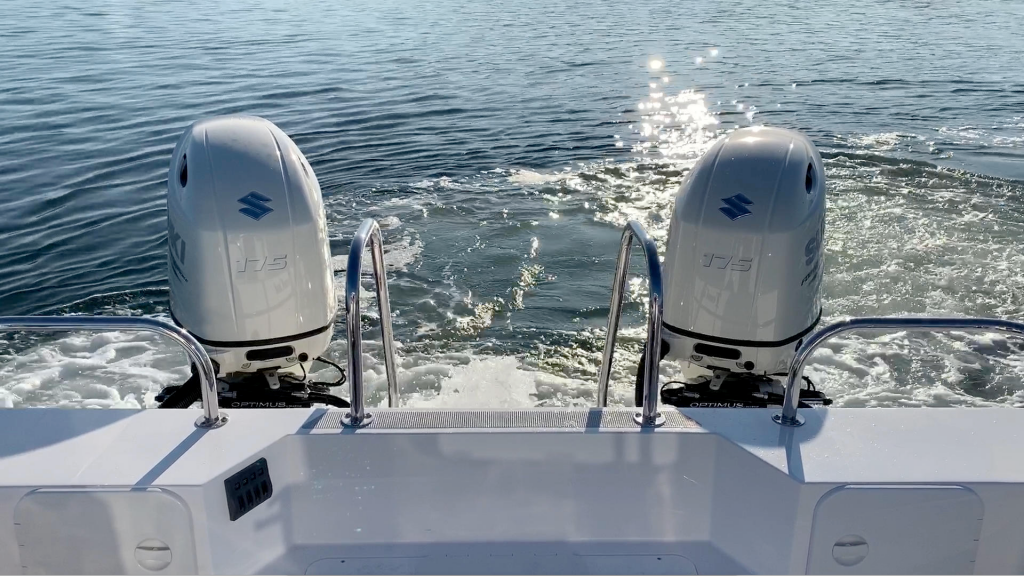

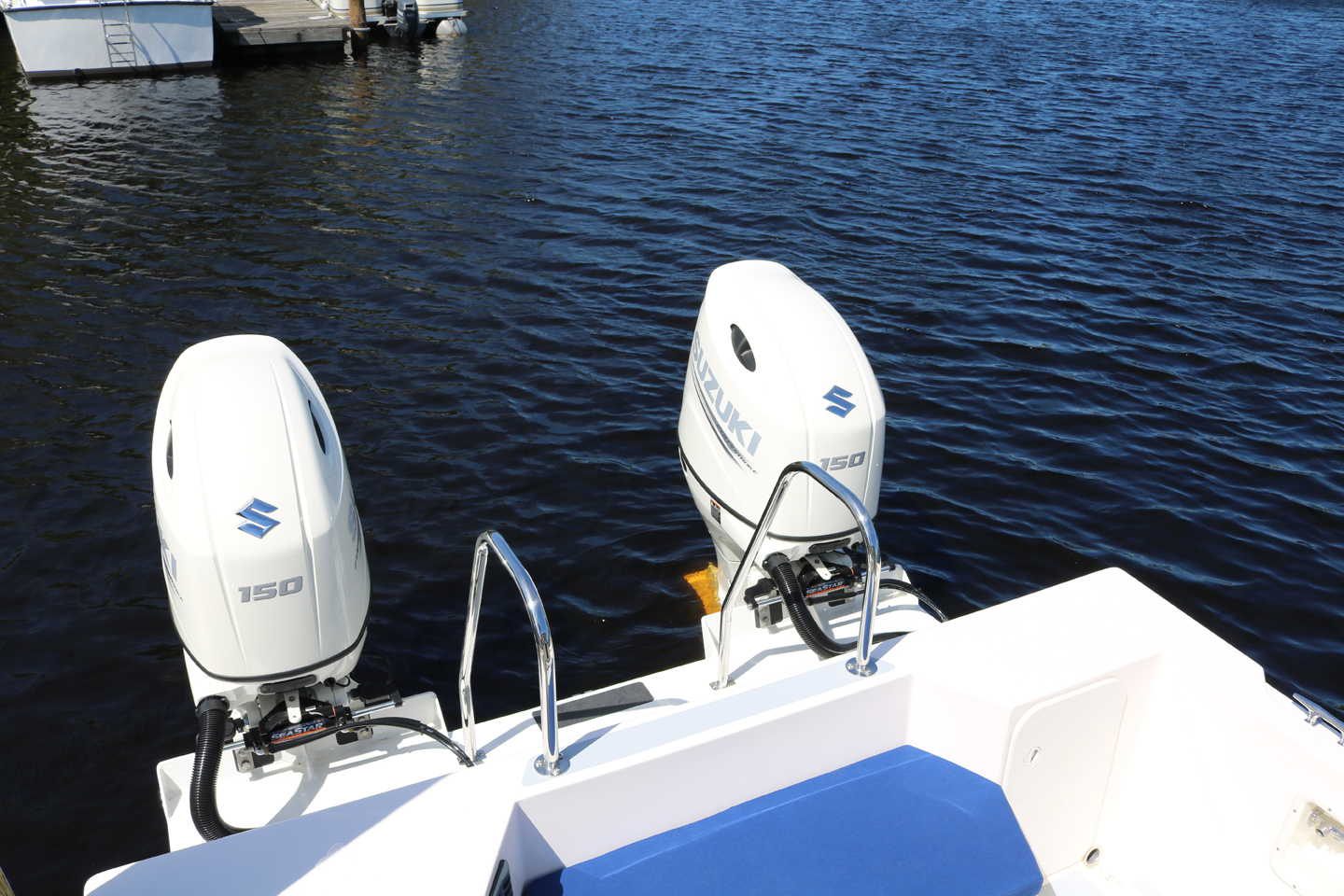

Widely spaced twin engines provide maneuverability around the dock and peace of mind when out on the water

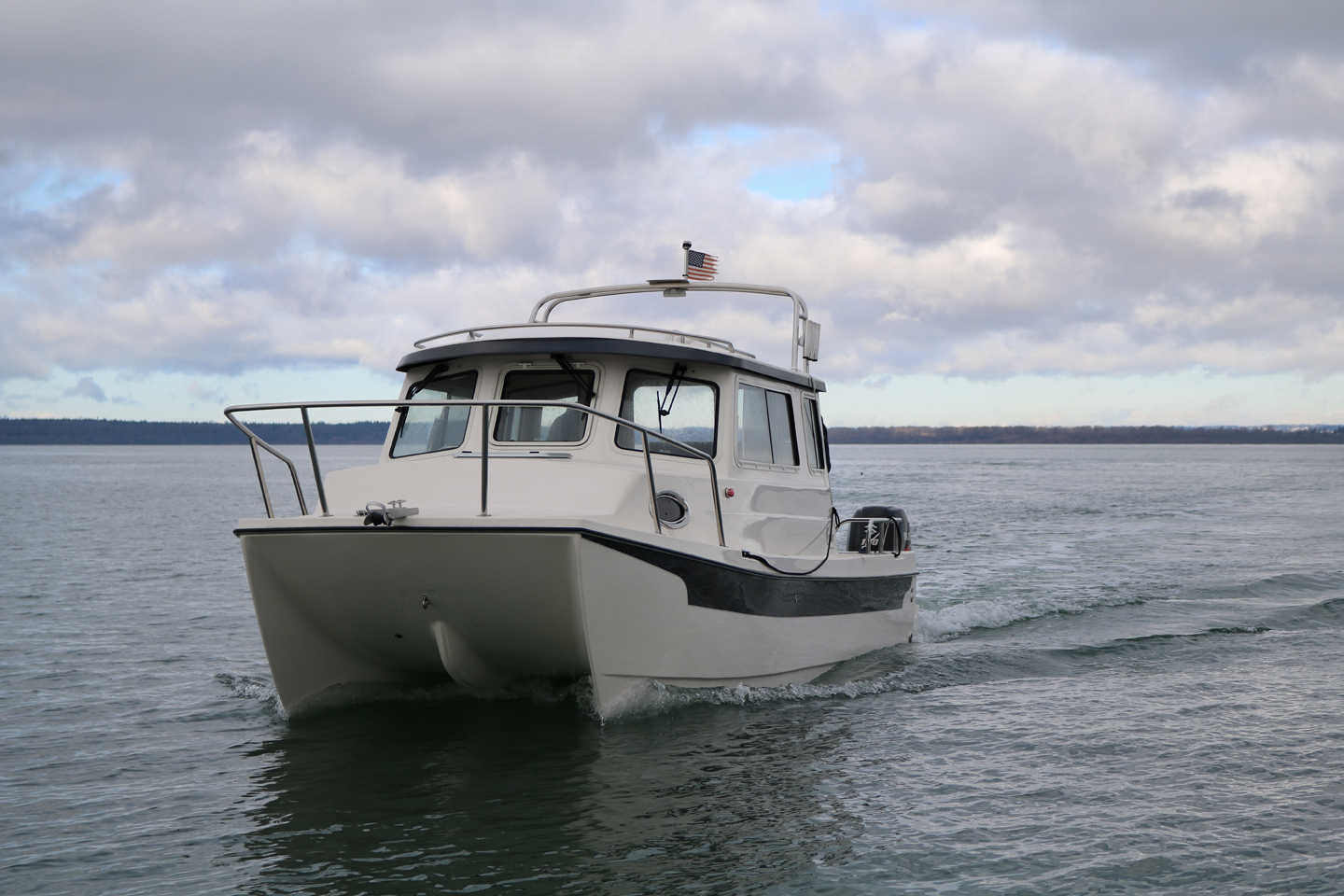

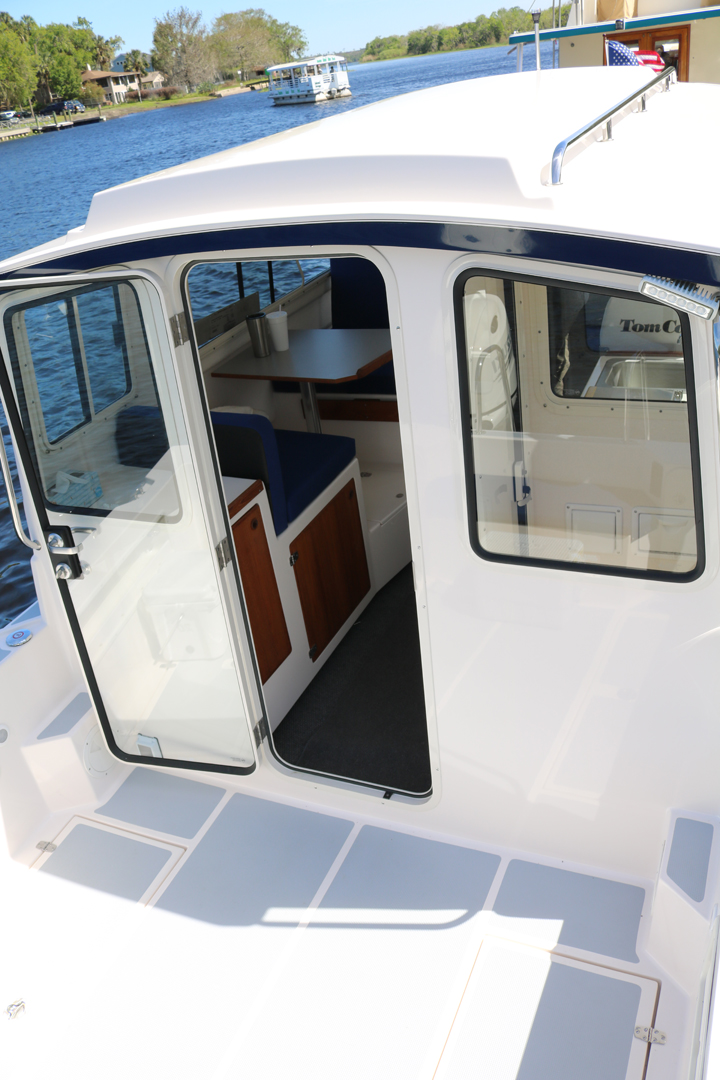

The Tomcat 255 rides and corners smoothly without any roll. It tracks straight at all speeds and runs flat and dry. The railings are all made of the highest grade 316 stainless steel and are oversized for extra strength and safety! Four foot insulated fish boxes with macerators provide plenty of room for the days catch. They also serve well as additional cockpit storage. The Tomcat 255 rides and corners smoothly without any roll. It tracks straight at all speeds and runs flat and dry. Twin engines provide maneuverability around the dock and peace of mind when out on the water. A spacious all weather pilothouse with an enclosed head and shower, make the Tomcat 255 a very smart trailer able vessel.

Fuel Capacity

150 gals

Weight

5,400 lbs (no motors)

Horsepower

350 hp Max

Features

  • Economic and robust
  • Well known and trusted C-Dory Design
  • Navigable in a variety of waters
  • Economically designed for memorable trips
  • Built for comfort

Engineering

  • All color accents and top deck non-skid patterns are molded-in

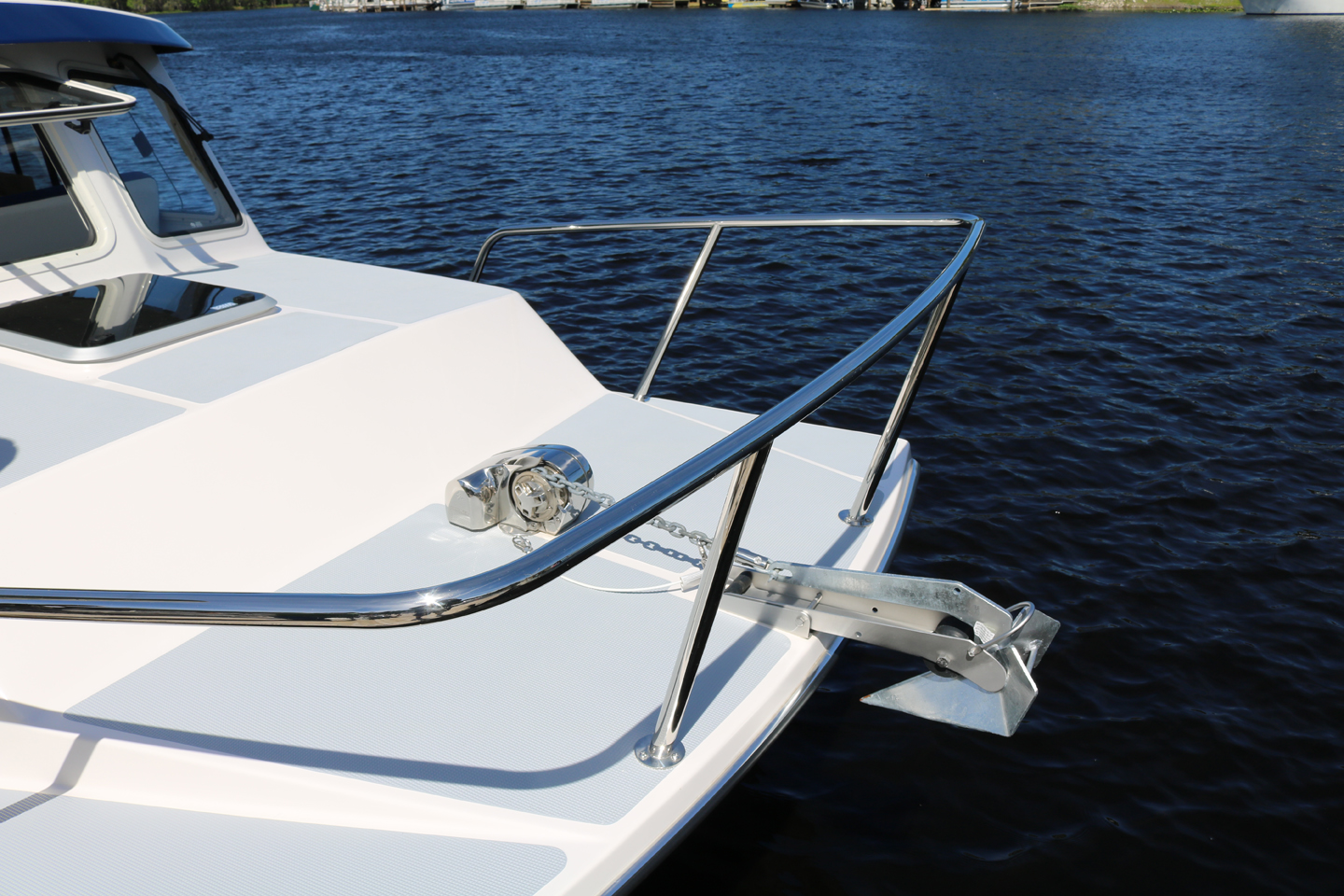

  • All deck hardware is stainless steel and top deck is ¾” thick
  • Deck hardware includes 5 through bolted SS cleats
  • Electric windshield wipers with pantographic arms
  • Easily transported via trailer
  • Classic C-Dory design allows it to dock or beach virtually anywhere

Engine

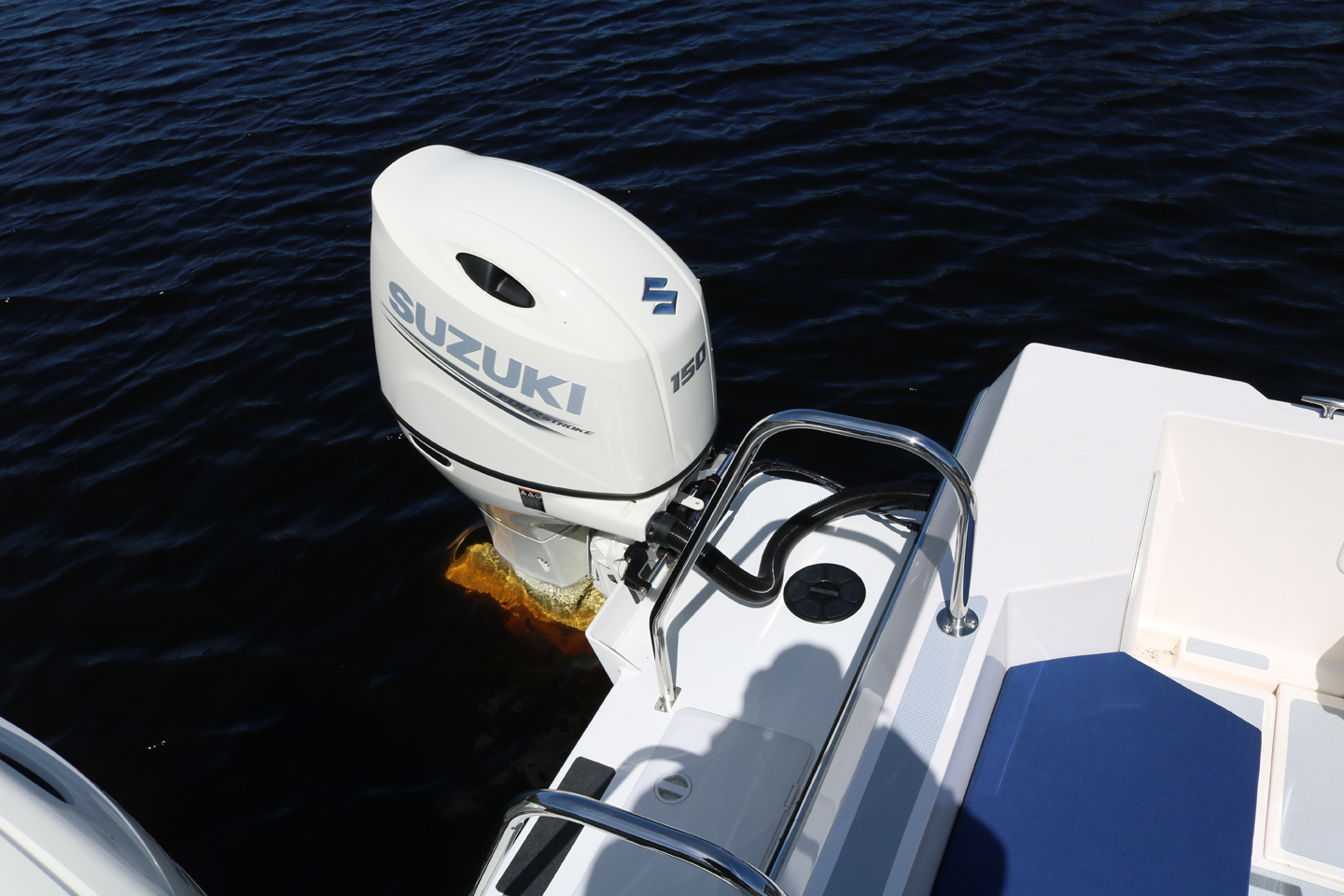

  • Designed to accommodate up to a 350 HP outboard engine
  • Designed to cruise comfortably between 10 and 30 knots

Specifications

General specifications

  • LOA 25’5″
  • Beam 8’6″
  • Headroom 6’5″
  • Weight 5,400 lbs
  • Cockpit 4’6″ long x 5’9″ wide
  • Fuel Capacity 150 gals
  • Water Capacity 30 gals
  • Power Outboard up to 350 HP
  • Material Fiberglass Composite
  • Tow Weight 9,500 lbs (Boat, Motors, Trailer, and Fuel)

Hull, deck and cockpit

  • 30 Amp shorepower with battery charger
  • Pressurized water system with 6 gallon hot water tank
  • Enclosed hot and cold stand up shower
  • Marine head with holding tank

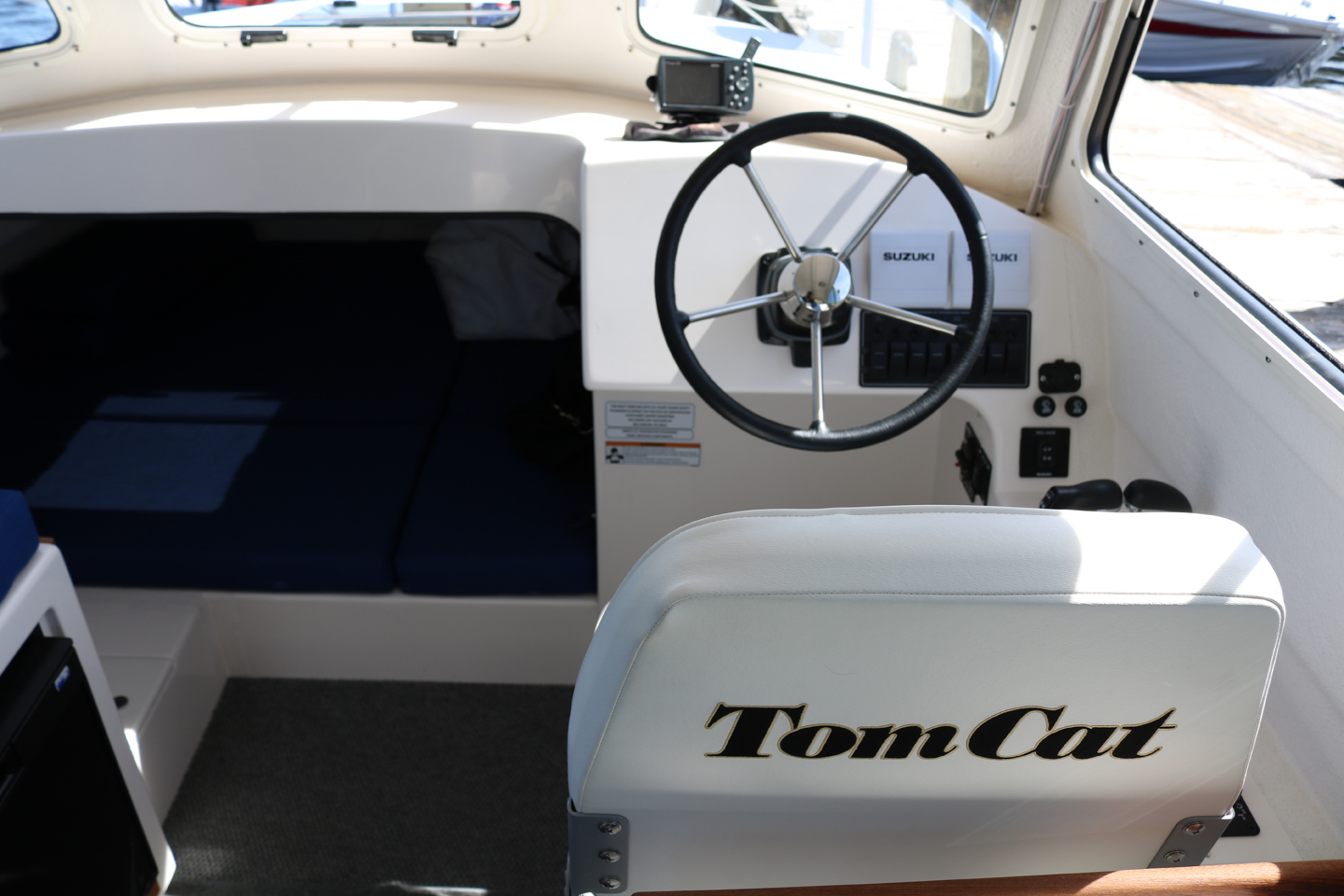

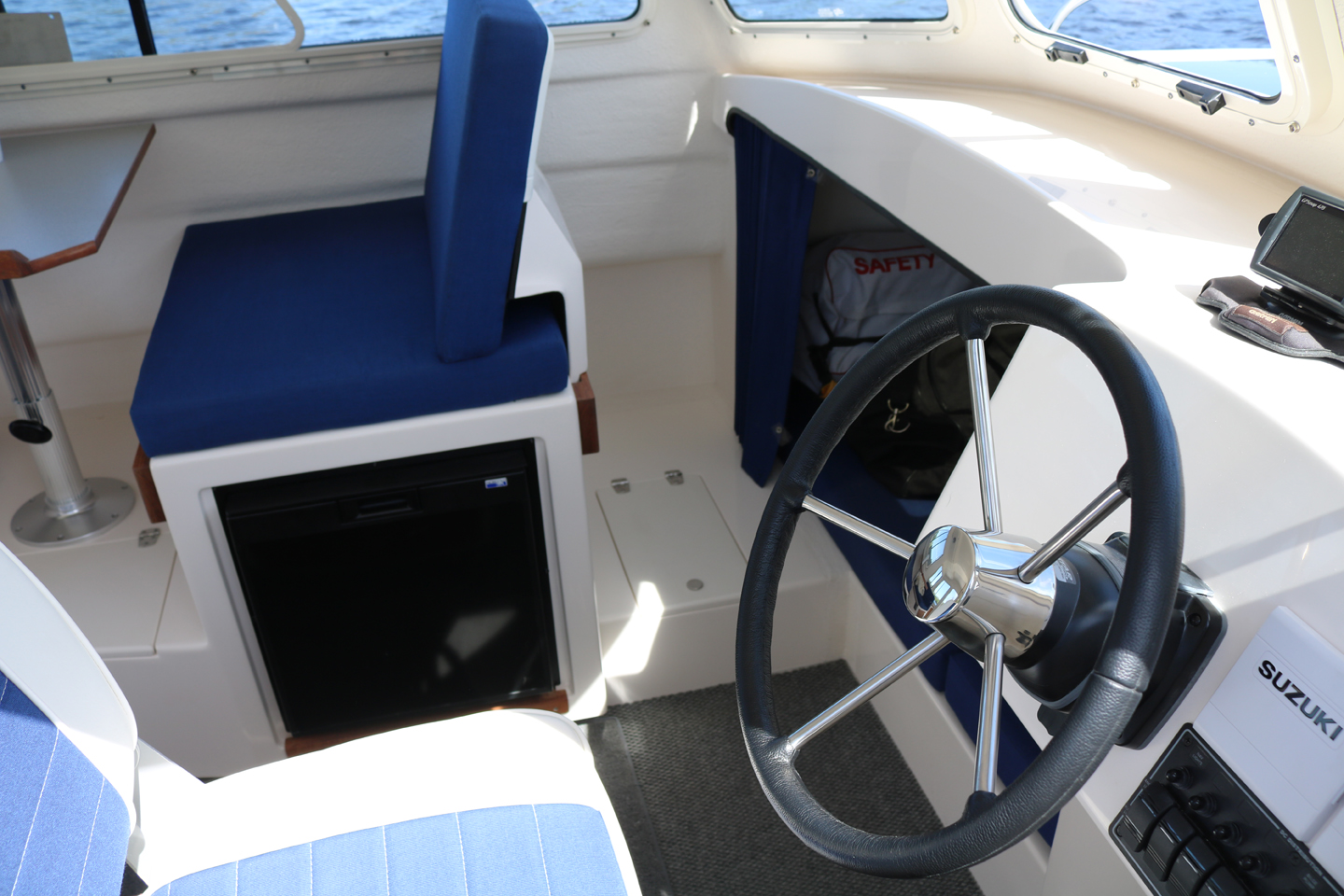

  • Hydraulic steering
  • Four foot fish boxes with fish box pumps

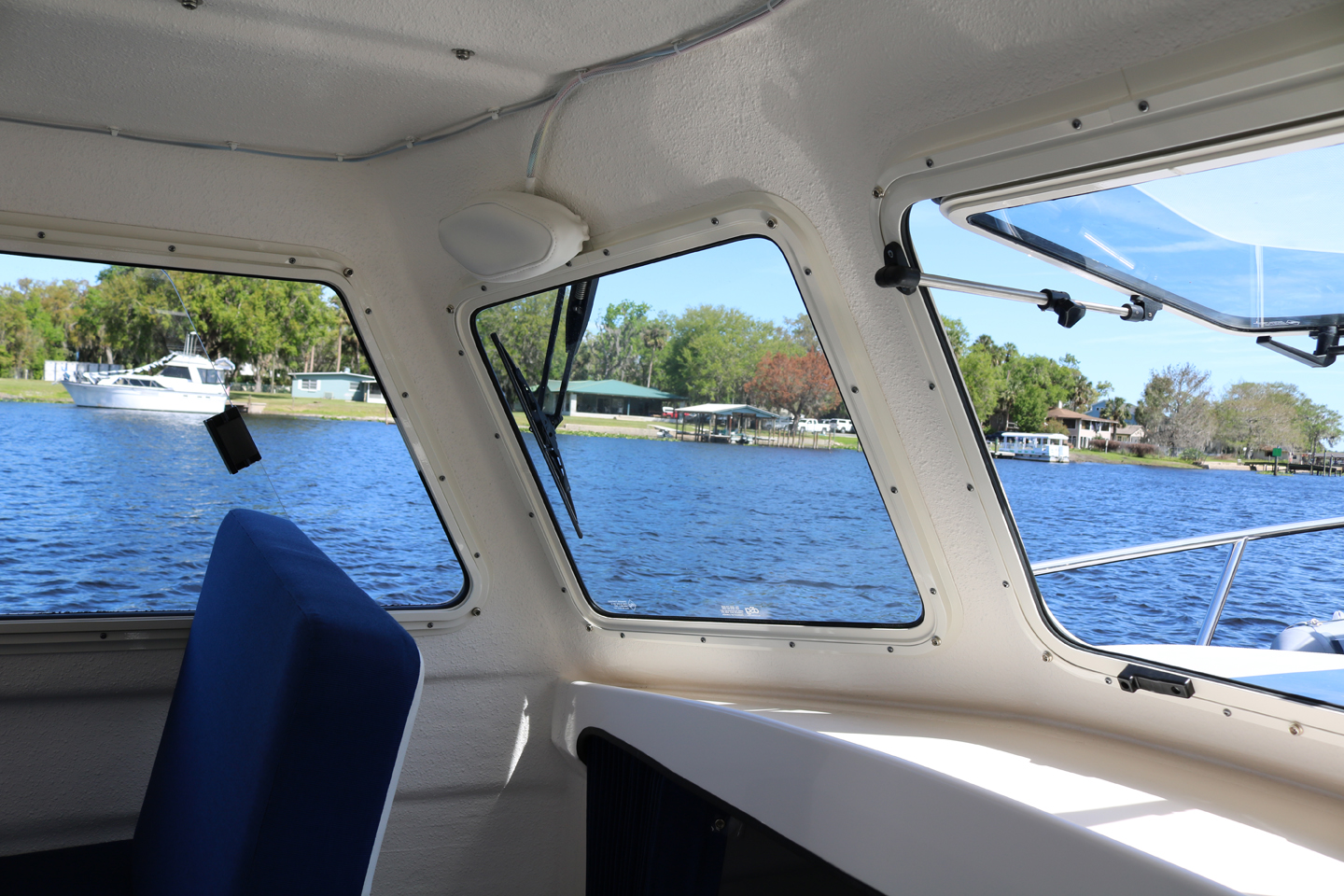

  • Opening front center window
  • Dual electric wiper motors

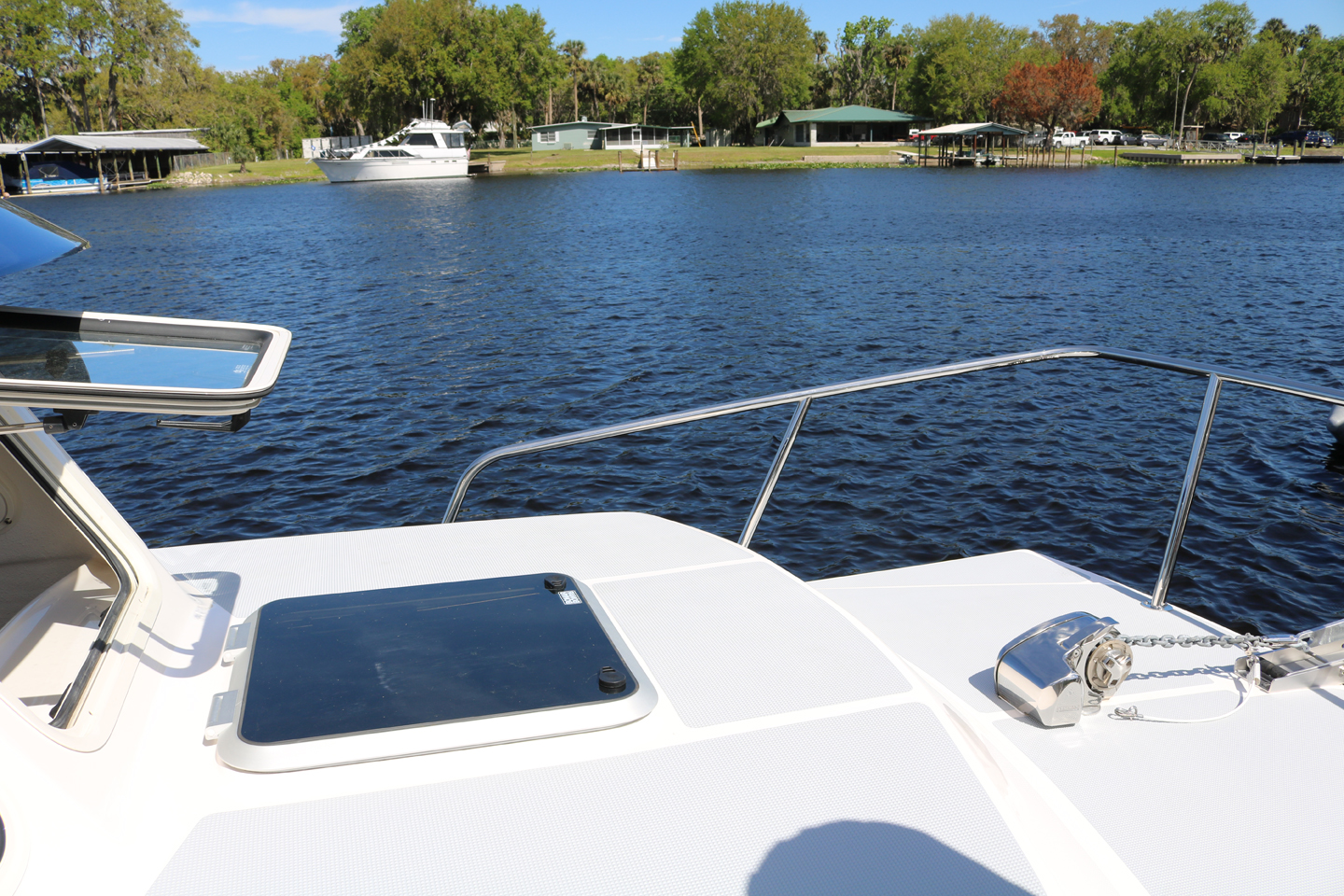

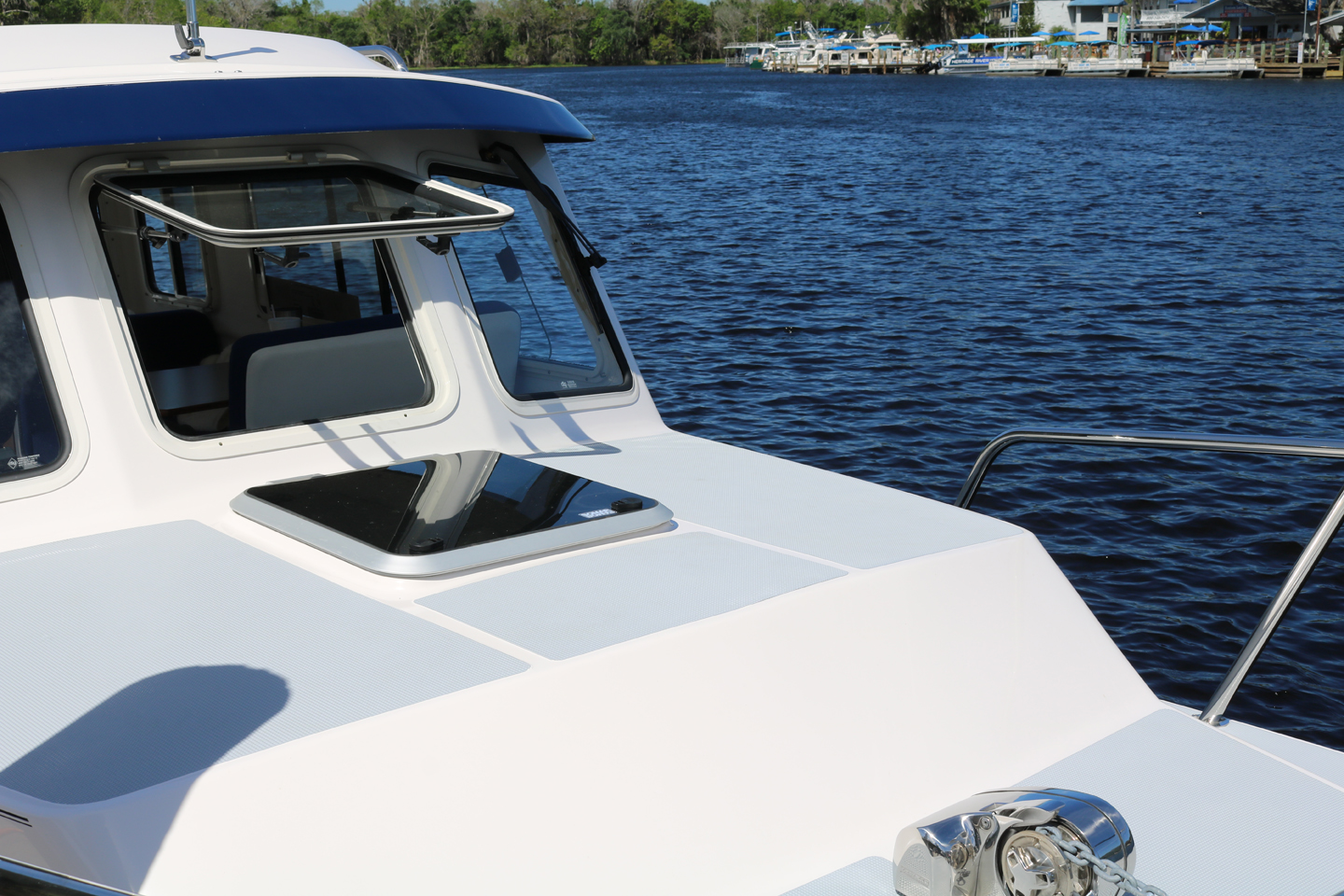

  • Lewmar Bow hatch
  • Outboard bracket with swim step
  • Standard 5-Year Hull Warranty

Comfort and interior

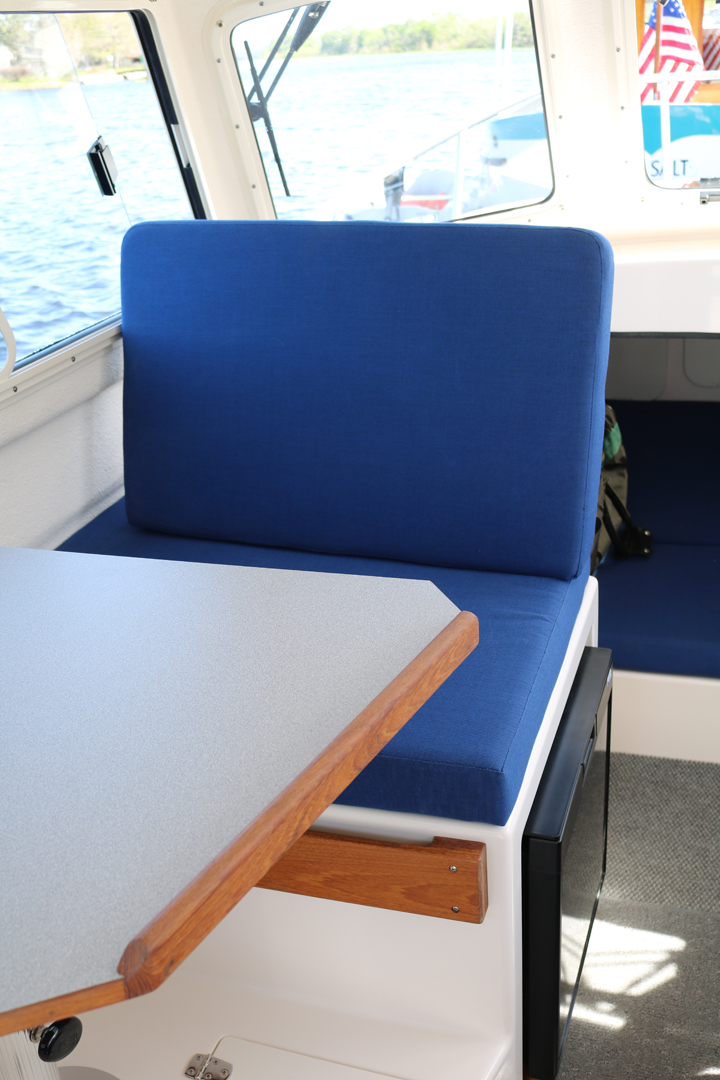

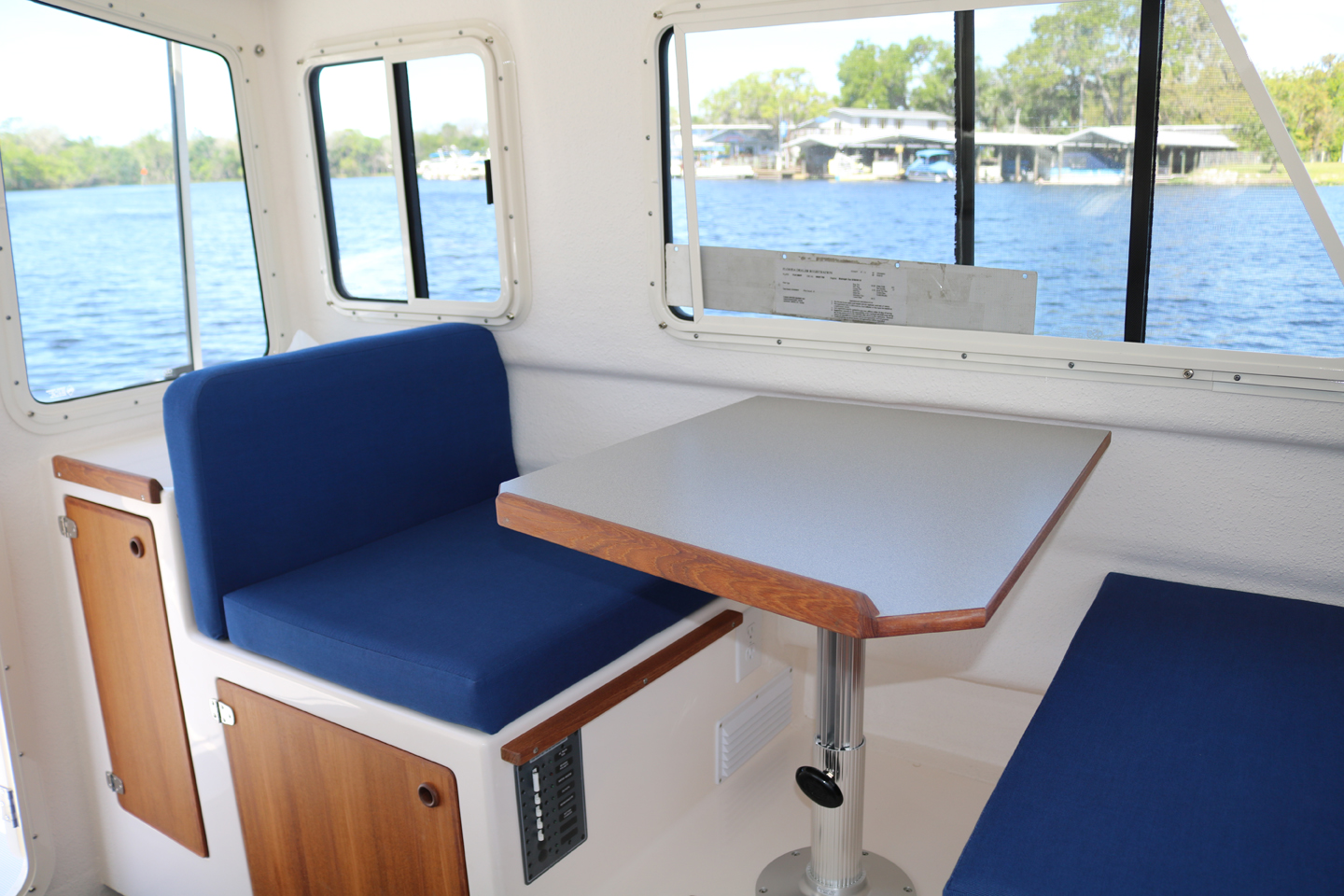

  • Spacious cabin with ample room for 4-6 passengers

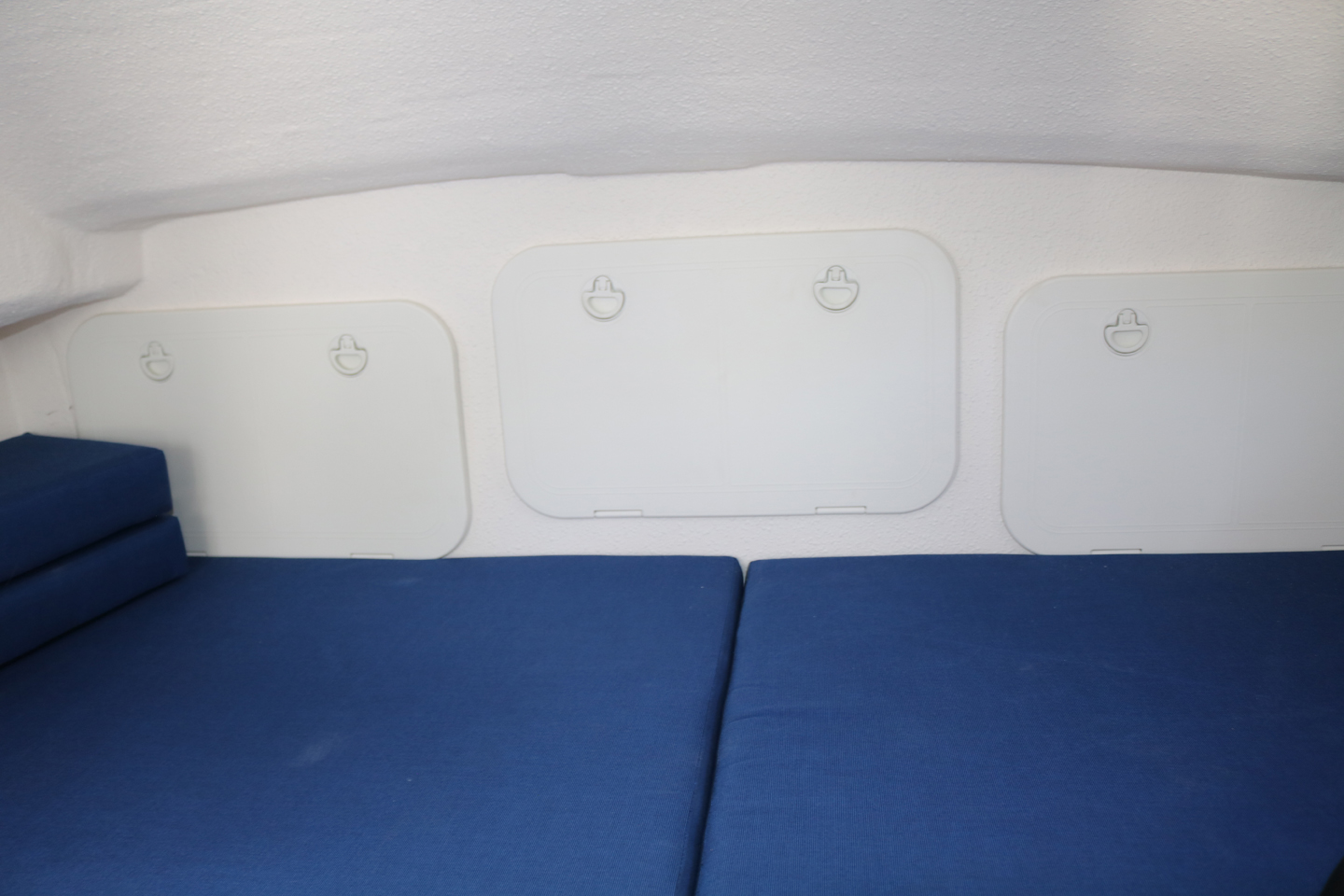

  • Comfortable v-berth with comfortable cushions hand-made at the factory
  • Hull liner and foam back vinyl

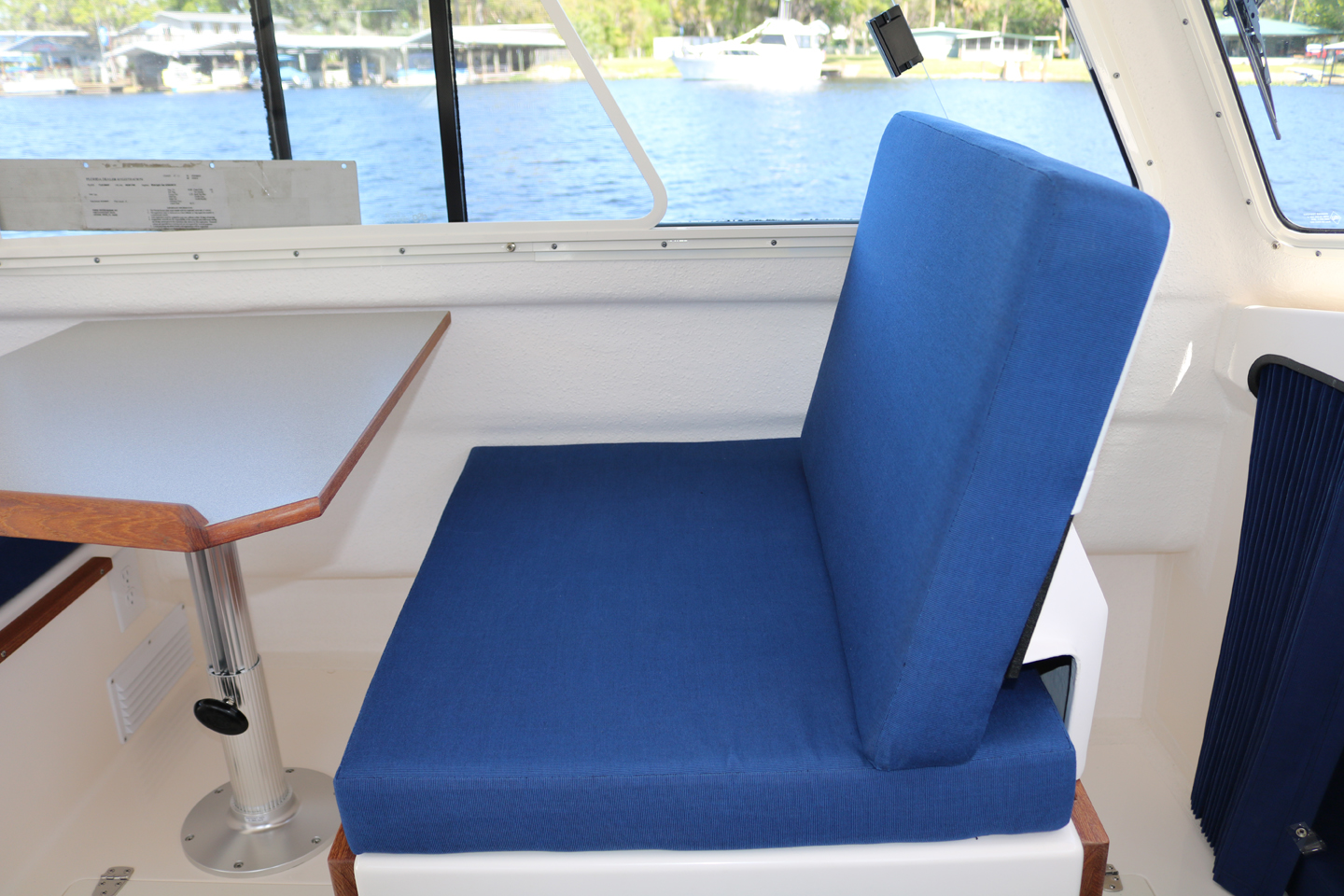

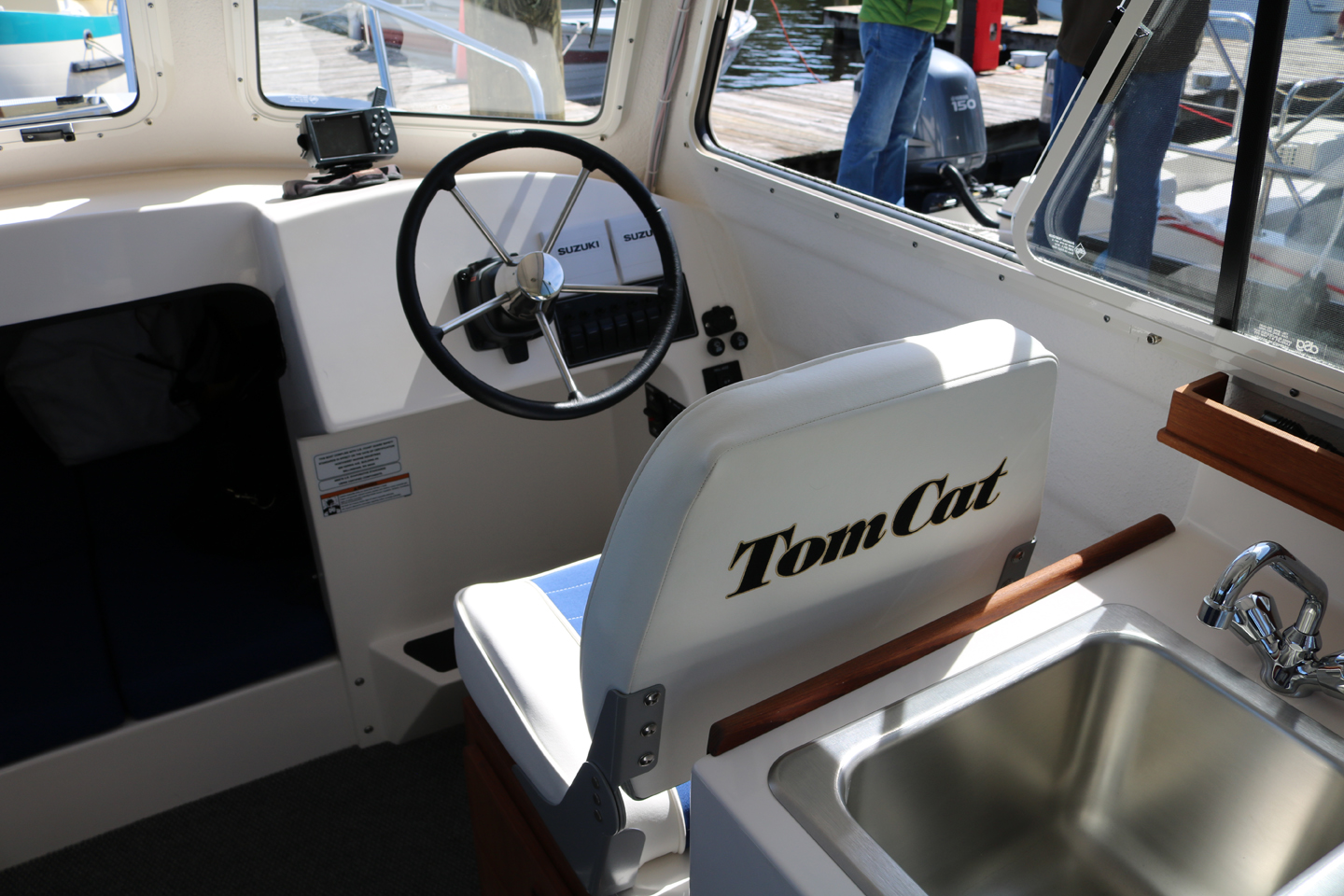

  • Ergonomically designed seats

Instrumentation and Safety Equipment

  • Fuel Capacity 150 Gallons
  • Automatic/Manual Bilge Pumps
  • Certification/Standard Compliance ABYC, USCG, CE

Optional Equipment

  • Anchor windlass
  • Refrigerator
  • Wash down pump
  • Diver swim step with ladder

Color Selection

  • Colored Gunnel Stripe and Boot stripe color options — Blue, Cabernet, Forest Green, Black
  • Custom colors optional
  • Fabric packages to match gel-coat colors

Specifications as well as standard and optional equipment are subject to change without notice. All measurements approximate. For more information and pricing, please contact your local C-Dory dealer.
